01 – What we measure

We find the weak links in connected vehicles and UAVs – before the users do.

We make testing easier and more cost-effective. So your first road or flight test confirms the design – instead of revealing its problems.

See how it works
02 · Why it matters

Component performance ≠
System performance

Antennas are usually tested one by one. But assembled into a car or a UAV, their performance changes – and the link can weaken or drop. We test the complete system over the air, in your own environment, and find the weak spot before it reaches the road or the field.

“If the signal fails, nothing else works.”

Founder & CEO, AI company · Estonian Defence Week
Find the weak links in antenna radiation patterns
0°90°180°270°
How strongly the antenna sends and receives in every direction around the carUAV. On its own it is almost even. Built in, a deep dip appears – a direction where the link weakens or drops. Measured repeatedly during development with RanLOS test solutions, it can be found, understood and fixed – in time.The antenna on its ownBuilt into the carUAVWeak directionIllustration, not a measurement.
03 · The shift

From one late test to continuous measurement.

It applies to everything that is connected. Every antenna is tested and approved on its own. Then it is built in – and the body, the airframe, the materials and other components change how it transmits and receives.

Today
Road or flight test

The complete system is tested when it is finished.

The car or drone is rarely measured until it is finished – on the road, in the air, or in a booked range somewhere else. Without early, repeatable measurements, faults surface when they are slowest and most expensive to fix.

The process
  1. Components tested
  2. Vehicle or drone built
  3. Road or flight test
  4. Fault found – too late
  5. Hard and costly to redesign
The result

Late. Expensive. Hard to repeat.

With BeamForce
In an existing chamber or tent

The complete system is measured throughout development.

With RanLOS, you get an easy-to-use, flexible and cost-effective test system. Measure the complete system early and repeatedly: find the weak direction, fix it and measure again – during development, not instead of road and flight testing.

The process
  1. Components tested
  2. Vehicle or drone built
  3. Measure · understand · improve
  4. Measure again
  5. Verification
The result

Early. Cost-effective. Repeatable.

In an existing chamber, a tent or on site.


Testing should run with development – not interrupt it.

04 · The solution

Measure the complete system. In your own chamber.

Turn the EMC chamber you already have, or a test tent, into an antenna range for complete vehicles and defence applications.

One measurement in under 15 minutes
Film: RanLOS
Large-facility quality
Antenna radiation pattern comparisonBeamForce 42Reference · large NF-FF chamber
Same antenna. Two methods.
Horn antenna · E-plane · 2000 MHzRanLOS BeamForceCATARC NF-FF chamber
Curves traced from the published figures · no scale
  • Within a dayIn use within a day of delivery.
  • Validated against NF-FFVery good agreement with an accredited range.
Sources: PB100-4 p. 2 · measurement time per RanLOS · AN102-2 p. 4 · PB100-4 p. 2 and 4 · WP103 p. 5 · Microwave Journal, Sep 2023 · Film: RanLOS
  • Easy to useYour own engineers run itA few steps in BeamLab. Set up and in use within a day of delivery.
  • FlexibleYou choose wherePortable – use the facility you already test in.
  • Cost-effectiveNo new facility to buildUse the chamber you already have and measure as often as the design changes.
  • Accurate and repeatableSee exactly what each change didFar-field results of the complete vehicle or UAV, repeatable from one change to the next.
Why RanLOS BeamForce?

A road or flight test shows that the link fails – not why. An accredited range shows the pattern – somewhere else, some weeks later. BeamForce shows the complete system where you already test, as often as the design changes.

CriterionRoad or flight testAccredited range / third-party labBeamForce
Repeatable, high precisionNoYesYes
Radiation pattern of the complete platformNoYesYes
Connectivity measured in the far fieldYesNoYes
Measurement inside development, as often as neededNoBooked, off siteYes
Time to a full antenna radiation patternNot statedlong (near-field sampling and transformation)< 15 min
No post-processing neededNoNoYes
RanLOS · application note AN102-2 · Microwave Journal, Sep 2023. Measurement time per RanLOS. “Accredited range” = near-field/far-field facility or third-party test lab.
05 · How it works

Move the antenna of the car.
Watch how the performance changes.
Move the antenna of the UAV.
Watch how the performance changes.

Where an antenna sits decides how the complete car radiates.
Drag the shark fin along the roof – then measure.
Where an antenna sits decides how the complete UAV radiates.
Drag the C2 antenna along the fuselage – then measure.

Drag the antennaPosition 42% from the rear
Available environments

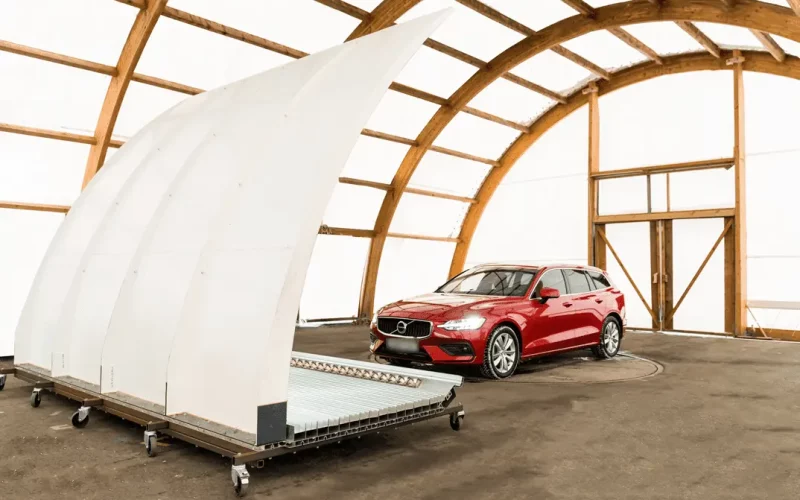

  • EMC chamber
  • Test tent
  • Customer site
  • Hangar or tent

BeamForce 42 rolled into an existing EMC chamber.BeamForce 42.

Azimuth pattern · 2.6 GHzIllustrative pattern · not a measurement
03 How it works

Measure. Understand. Improve. Repeat.

Choose your BeamForce system and measure the complete vehicle or UAV as often as the design changes.

01

Measure

Set up in your own facility and in use within a day of delivery.

02

Understand

A full antenna radiation pattern in under 15 minutes. Results as numbers you can act on.

03

Improve

Move the antenna, change the body, measure again – under identical conditions.

04

Repeat

As often as the design changes. Through development, not after it.

06 · Proof

In use at customer sites from Europe to Asia.

Developed and validated in Sweden. In place in Japan, China, Sweden and South Korea. Sites shown by country only.

From Chalmers antenna research in 2016 to customer sites on two continents. Our story →
Link · measured · known
What others say
  • We see a growing demand among Japanese vehicle manufacturers for efficient and reliable test solutions for wireless systems. RanLOS’s technology offers an impressive combination of measurement quality and operational efficiency, and we are pleased to cooperate in delivering BeamForce 42 to the Japanese market.

    Yoshimichi ImaizumiDirector, Senior Executive Officer, TOYO Corporation, Japan
  • We are very pleased to introduce RanLOS innovative test solutions to the South Korean market. There is a clear and growing demand for test solutions that combine high precision with cost efficiency. We see great potential in RanLOS test platform and believe this first delivery is the beginning of a long-term and successful collaboration that will create significant value for our customers.

    Peter SongCEO, Dymstec, South Korea
  • By integrating the Anritsu MT8000A 5G network simulator with the RanLOS system, we offer the automobile test marketplace an advanced solution with technologically and cost-effective benefits. With the constant and rapid progress in autonomous services, in-vehicle antenna performance significantly matters. The solution ultimately equates to an improved user experience, which benefits the evolution of widely spreading smart society. We are thrilled to promote it globally, collaborating with TOYO and AeroGT Labs.

    Takeshi ShimaDirector, Senior Vice President, Test & Measurement Company President, Anritsu
  • A central theme throughout Estonian Defence Week was bridging the gap between cutting-edge technology and dependable, mission-ready performance. Testing is where that trust is built. Great connecting and exchanging ideas in Tallinn.

    Defence and technology strategistEstonian Defence Week
07 · Decisions you can make earlier

What changes when the complete system is measured early.

  • RF / antenna engineerWhere should the antenna go?Where should the C2 antenna go?

    Measure both positions on the complete vehicle and compare them under identical conditions – while the design can still change.Measure both positions on the complete UAV and compare them under identical conditions – while the design can still change.

    Answers in minutes, not weeksAnswers during development, not after it
  • Project or programme managerWhich design iteration goes forward?

    Measure again after every change and let the data decide. Weak directions show up during development, while changes are still cheap.

    Decisions earlier, fewer surprises late
  • Test labCan we do this in the facility we already have?

    Yes. An existing EMC chamber or a test tent becomes an antenna range – set up and in use within a day of delivery.

    More use of what you already own
  • Management and procurementIs it worth the investment?

    No new facility to build and no booking off site. The same system measures every design change, as often as needed.

    Something to count on
08 · For

Two worlds. One test solution.

Also for

The same solution, for several use cases.

Electronics & connected devices

Test the finished product, not the reference design: radiation pattern, throughput and thresholds over 4G, 5G, Wi‑Fi and V2X – for base stations, terminals and other connected devices, while the design can still change.

Test labs & research

More use of the chamber you already have – for development and research, without building a new range.

Partners & distributors

Distributors in Europe, Japan and South Korea. Rental on request.
