Converts near field to far field in real-time (CATR)

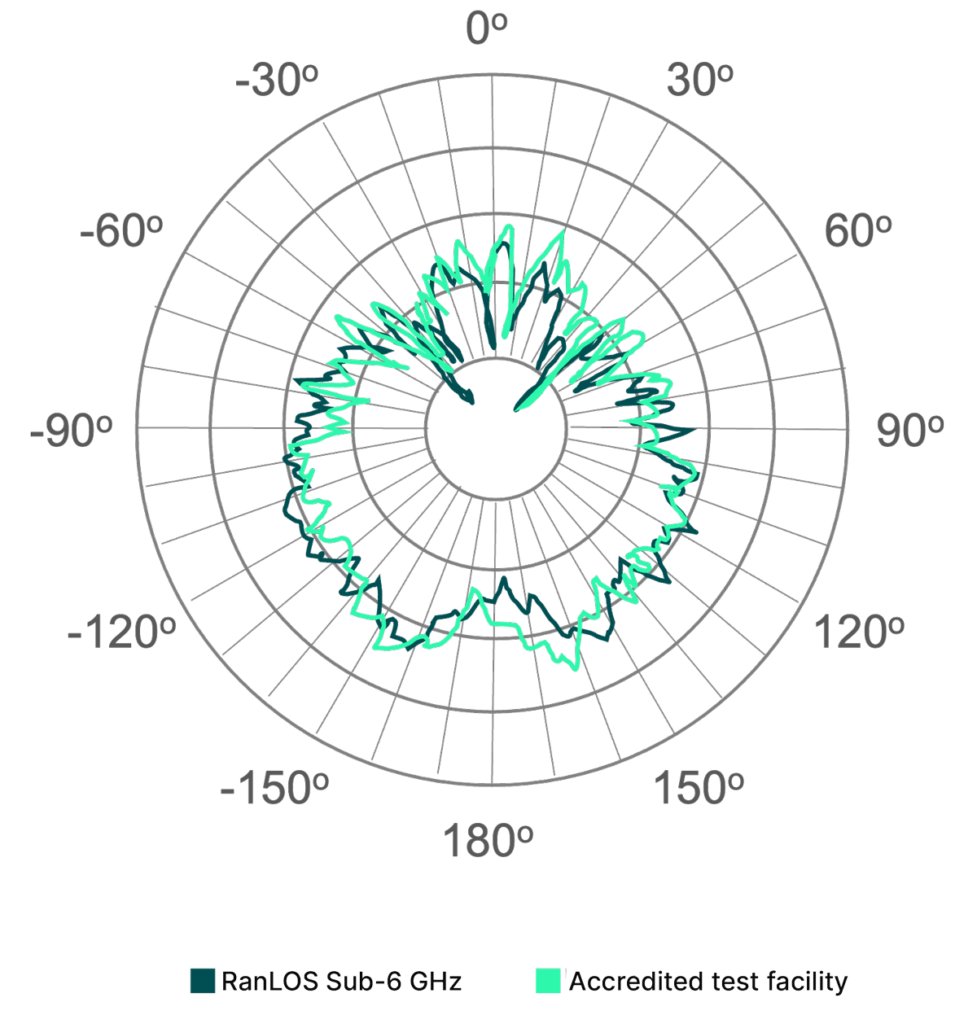

Measures antenna radiation pattern and data throughput
Portable test system that suits both smaller and larger test facilities
PRODUCTS

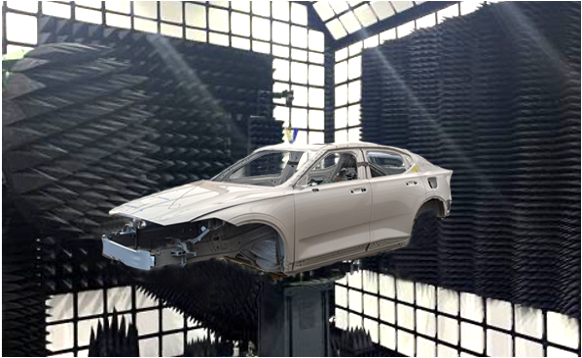

The RanLOS BeamForce 42 test system is the ideal equipment for testing larger devices like vehicles and base stations. Our portable system can be rolled into an existing EMC chamber or other test facilities.

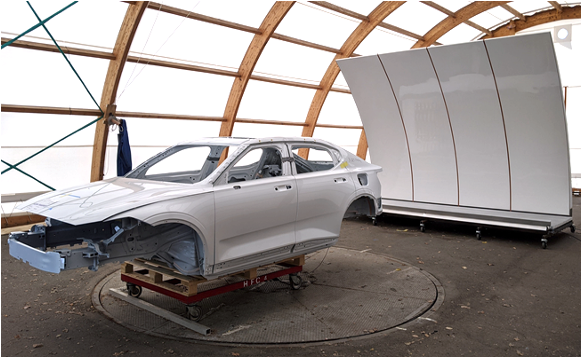

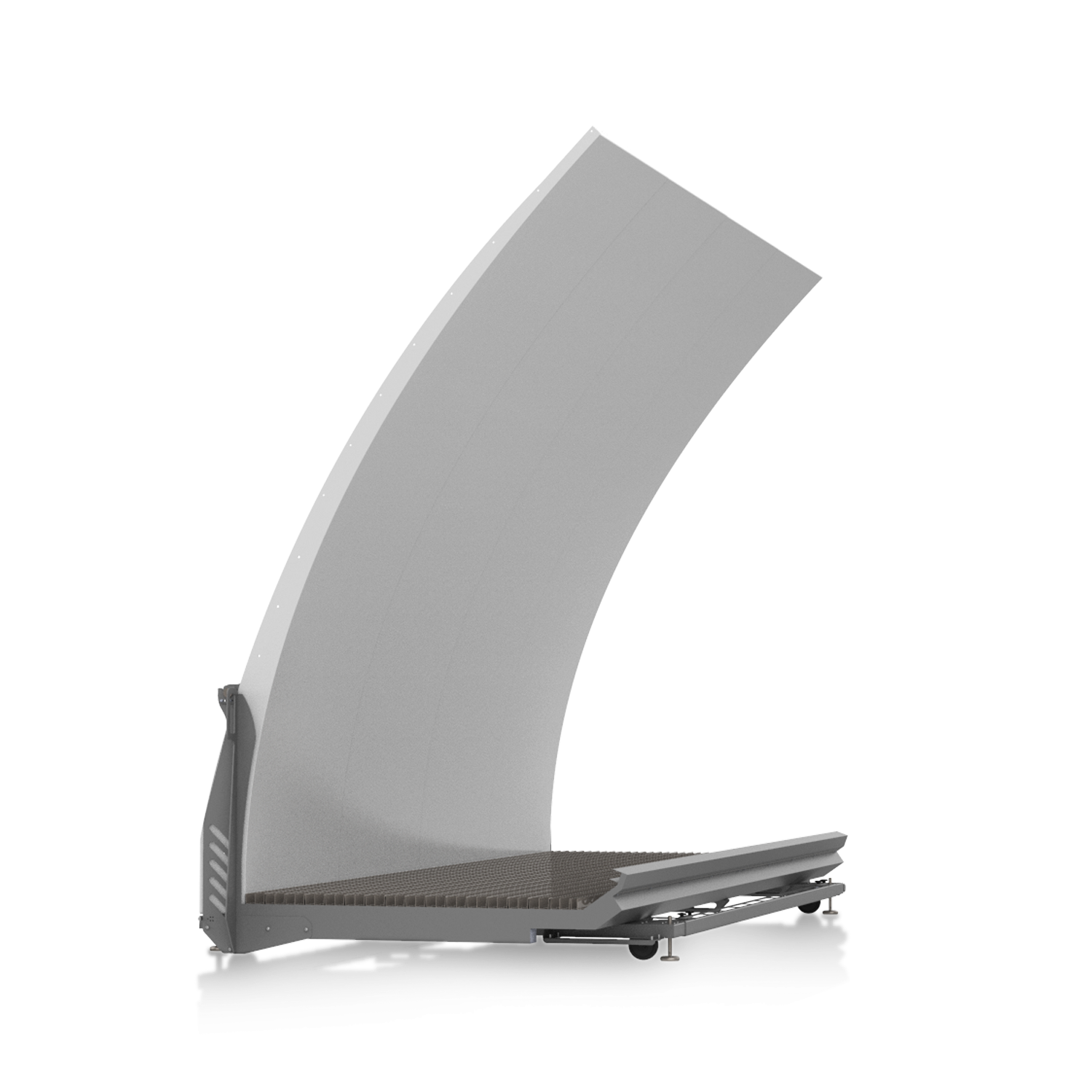

RanLOS BeamForce 42 is an OTA test system for vehicle testing. It consists of a cylindrical reflector fed by a dual-polarized linear antenna array.
The system currently covers the frequency range from 700 MHz to 6 GHz and is upgradeable to higher frequencies on request.
The system provides two operational modes: Passive for antenna radiation pattern measurements and active for communication performance testing, for example throughput. Together with RanLOS BeamLab (software), the system is compatible with a large number of instruments, turntables and other test equipment.
1.9 m x 3.4 m x 4.4 m
D x H x W
(reflector width 4.2 m)
PRODUCTS

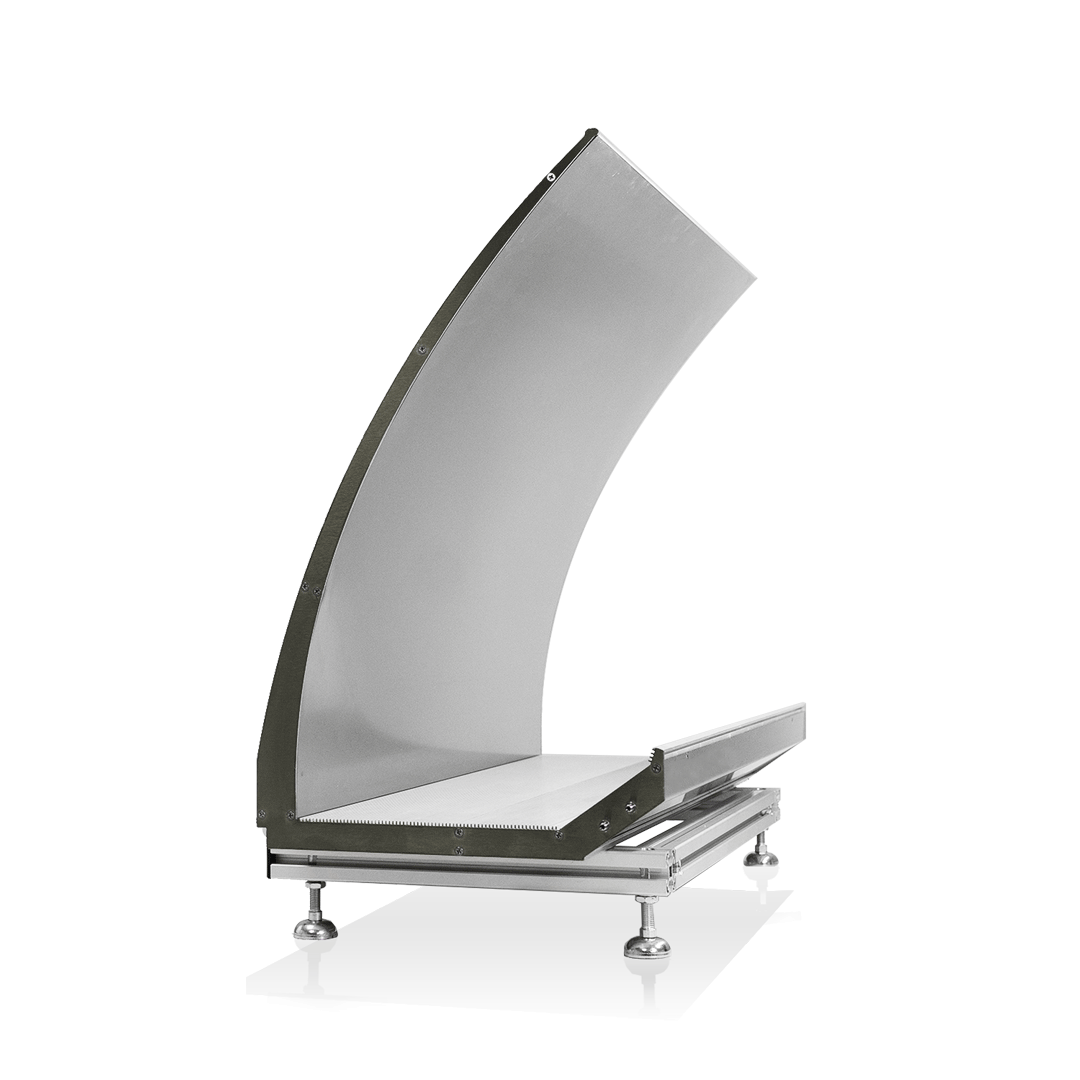

RanLOS BeamForce 8 is an ideal equipment for measuring smaller devices such as mobile phones and base stations at higher frequencies.
RanLOS BeamForce 8 consists of a cylindrical reflector fed by a dual polarized passive linear antenna array. It is designed to be installed in small chambers.
The system covers the frequency range from 27 to 28.7 GHz and is upgradeable to other frequencies.
The system provides two operational modes: Passive for antenna radiation pattern measurements and active for communication performance testing, for example throughput. Together with the RanLOS BeamLab (software), the system is compatible with a large number of instruments, turntables, and other test equipment.
0.4 m x 0.7 m x 0.8 m
(D x H x W)
RanLOS has partnered up with Ronshield AB, which enables us to provide a complete BeamForce 8 setup including a small anechoic chamber.
Read more at: www.ronshield.se
PRODUCTS
RanLOS BeamTilt is an advanced lift-and-tilt solution designed to complement the RanLOS test systems to enhance the flexibility of testing antennas and wireless communication from different elevation angles.
RanLOS BeamTilt enables semi-3D measurement capabilities and was developed as part of the government-funded SIVERT 2 project. It provides precise evaluations at different elevation angles, allowing for greater flexibility in testing antennas and wireless performance.
Combined with the BeamForce 42 test system, BeamTilt allows for more detailed and realistic testing scenarios, helping companies and industries optimize antenna designs for vehicles and other wireless connected systems.
Contact sales for more details.
The wireless systems are becoming more advanced and will require increasingly more tests to be verified. During my many years in research and development in the field of EMC, the demands on the equipment to be tested have increased. We are now facing a change where not only EMC needs to be tested, but also communication quality between vehicles and the environment. This places other demands on the test equipment in the lab, and the RanLOS system is a great solution for this.
Leave your details below and we’ll get back to you.
Leave your details below and we’ll get back to you
We aim to create a better connected society. To do so we need easy-to-use and flexible solutions for testing wireless performance over-the-air (OTA). It includes all relevant standards today and tomorrow; such as 3G, 4G, 5G, and WiFi. Work with us and start measuring easier, faster and smarter.
