Modular test systems. Same software.

BeamForce is an antenna test system – a compact antenna test range that turns the EMC chamber, tent or lab you already have into a far-field range.

BeamForce 42 rolled into an existing EMC chamber.

Why teams choose BeamForce

  • Easy to useYour own engineers run itA few steps in BeamLab. Set up and in use within a day of delivery.
  • FlexibleYou choose wherePortable – use the facility you already test in.
  • Cost-effectiveNo new facility to buildUse the chamber you already have and measure as often as the design changes.
  • Accurate and repeatableSee exactly what each change didFar-field results of the complete vehicle or UAV, repeatable from one change to the next.
01 · Why BeamForce

A far-field range inside your existing chambers.

  • Full measurement done in minutesA full antenna radiation pattern in under 15 minutes. Results as numbers you can act on.
  • ModularYou choose the system size for your object and the feed arrays for your frequencies.
  • BeamForce 42

    BeamForce 42

    Status: Available

    ForVehicles, UGVs, UAVs and other connected systems
    More information about BeamForce 42
    Where you place itRolls on its own wheels into an existing EMC chamber, semi-anechoic chamber or test tent
    MeasuresAntenna radiation patterns (passive) and throughput (active), 4G, 5G, V2X and WiFi
    Size1.9 × 3.4 × 4.4 m (D × H × W), approx. 450 kg
    Frequency rangeFeed arrays (BeamArray), exchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHz. Upgradeable to higher frequencies.
    Key points
    • A full antenna radiation pattern in under 15 minutes – run test after test in the chamber or test site you already have.
    • Repeatability < 0.15 dB, quiet-zone STD < 1.6 dB
  • BeamForce 21
    Rendering, illustrative

    BeamForce 21

    Status: Available

    ForDrones, subsystems and other compact connected devices – for defence and civil industry
    More information about BeamForce 21
    Where you place itExisting EMC chambers, semi-anechoic chambers and test tents – made for limited spaces and mobile test setups
    MeasuresAntenna radiation patterns (passive) and throughput (active), 4G, 5G, V2X and WiFi
    Size1.3 × 2.3 × 2.3 m (D × H × W), approx. 200 kg
    Frequency rangeFeed arrays (BeamArray), exchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHz. Upgradeable to higher frequencies.
    Key points
    • Far-field measurement in a lab you already have
    • Same method and BeamLab workflow as the 42
  • BeamForce 8

    BeamForce 8

    Status: Available

    ForSmaller base stations, terminals and other small devices at mmWave
    More information about BeamForce 8
    Where you place itIn a small test chamber, or stand-alone
    MeasuresAntenna and OTA performance, up to 2×2 MIMO
    Size0.4 m deep × 0.8 m wide, approx. 20 kg
    Frequency range27–28.7 GHz, upgradeable
    Key points
    • Every prototype measured when it is ready, not when a lab has a slot
    • BeamLab: same sequences, plots and export

Tell us what you need to test and where. We reply with a configuration and a quote.

02 · Product comparison

Which RanLOS product suits your needs?

Use
Use
SpecificationBeamForce 42BeamForce 21BeamForce 8
ForVehicles, UGVs, UAVs and other connected systemsDrones, subsystems and other compact connected devices – for defence and civil industrySmaller base stations, terminals and other small devices at mmWave
Where you place itRolls on its own wheels into an existing EMC chamber, semi-anechoic chamber or test tentExisting EMC chambers, semi-anechoic chambers and test tents – made for limited spaces and mobile test setupsIn a small test chamber, or stand-alone
SoftwareBeamLabBeamLabBeamLab
Frequency
Frequency
SpecificationBeamForce 42BeamForce 21BeamForce 8
Frequency0.7–6 GHz, upgradeable0.7–6 GHz, upgradeable27–28.7 GHz, upgradeable
Feed arrays (BeamArray)Exchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHzExchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHzExchangeable
Feed connectors2 × N (female), dual polarised, 50 Ω2 × N (female), dual polarised, 50 Ω2 × 2.92 mm (female), dual polarised, 50 Ω
Size
Size
SpecificationBeamForce 42BeamForce 21BeamForce 8
Footprint (D × H × W)1.9 × 3.4 × 4.4 m1.3 × 2.3 × 2.3 m0.4 m deep × 0.8 m wide
Weightapprox. 450 kgapprox. 200 kgapprox. 20 kg
Quiet zone (Ø × height)1.5 × 1.4 m0.8 × 0.6 m0.3 × 0.2 m
Test volume (W × D × H)2.0 × 10 × 1.4 m1.0 × 5 × 0.7 mNot stated
Accuracy
Accuracy
SpecificationBeamForce 42BeamForce 21BeamForce 8
Repeatability The same object measured again lands within 0.15 dB, so a change you make shows as a real difference. BeamForce 42, MSA at 1.7 GHz at a customer site (product brochure PB100-4 p. 3).< 0.15 dBNot statedNot stated
Quiet-zone STD, amplitude< 1.6 dB< 1.5–2.0 dB< 1.2 dB
Quiet-zone STD, phase< 10°< 10–15°< 10°
Peak-to-peak, amplitude< 3 dB< 1.5–4.5 dB< 4 dB
Time
Time
SpecificationBeamForce 42BeamForce 21BeamForce 8
Full antenna radiation pattern< 15 minNot statedNot stated

Product brochure (PDF)Figures from the RanLOS product brochure PB100-4; test volume from the RanLOS customer presentation 2026; measurement time per RanLOS. BeamForce 21: specification data preliminary (PB100-4 p. 9). “–” = not stated in our material.

03 · Compared with the alternatives

Why RanLOS BeamForce?

A road or flight test shows that the link fails – not why. An accredited range shows the pattern – somewhere else, some weeks later. BeamForce shows the complete system where you already test, as often as the design changes.

CriterionSources: RanLOS application note AN102-2 and Microwave Journal, Sep 2023. Measurement time per RanLOS. Accredited range: a near-field or far-field facility, or a third-party test lab.Road or flight testAccredited range / third‑party labBeamForce
Repeatable, high precisionNoYesYes
Radiation pattern of the complete platformNoYesYes
Connectivity measured in the far fieldYesNoYes
Measurement inside development, as often as neededNoBooked, off siteYes
Time to a full antenna radiation patternNot statedlong (near-field sampling and transformation)< 15 min
No post-processing neededNoNoYes
  • Repeatable, high precision

    Road or flight test
    No
    Accredited range / third‑party lab
    Yes
    BeamForce
    Yes
  • Radiation pattern of the complete platform

    Road or flight test
    No
    Accredited range / third‑party lab
    Yes
    BeamForce
    Yes
  • Connectivity measured in the far field

    Road or flight test
    Yes
    Accredited range / third‑party lab
    No
    BeamForce
    Yes
  • Measurement inside development, as often as needed

    Road or flight test
    No
    Accredited range / third‑party lab
    Booked, off site
    BeamForce
    Yes
  • Time to a full antenna radiation pattern

    Road or flight test
    Not stated
    Accredited range / third‑party lab
    long (near-field sampling and transformation)
    BeamForce
    < 15 min
  • No post-processing needed

    Road or flight test
    No
    Accredited range / third‑party lab
    No
    BeamForce
    Yes

SourcesSources: RanLOS application note AN102-2 and Microwave Journal, Sep 2023. Measurement time per RanLOS. Accredited range: a near-field or far-field facility, or a third-party test lab.

Where BeamForce fits

Development and preparation for verification.

Repeatable measurements on site, as often as the design changes. The final verification against a standard or a customer requirement is still done at an accredited facility – you arrive there prepared, with the weak angles already found and fixed.

04 · RanLOS software

Perform a measurement in a few easy steps.

BeamLab at the desk · RanLOS film

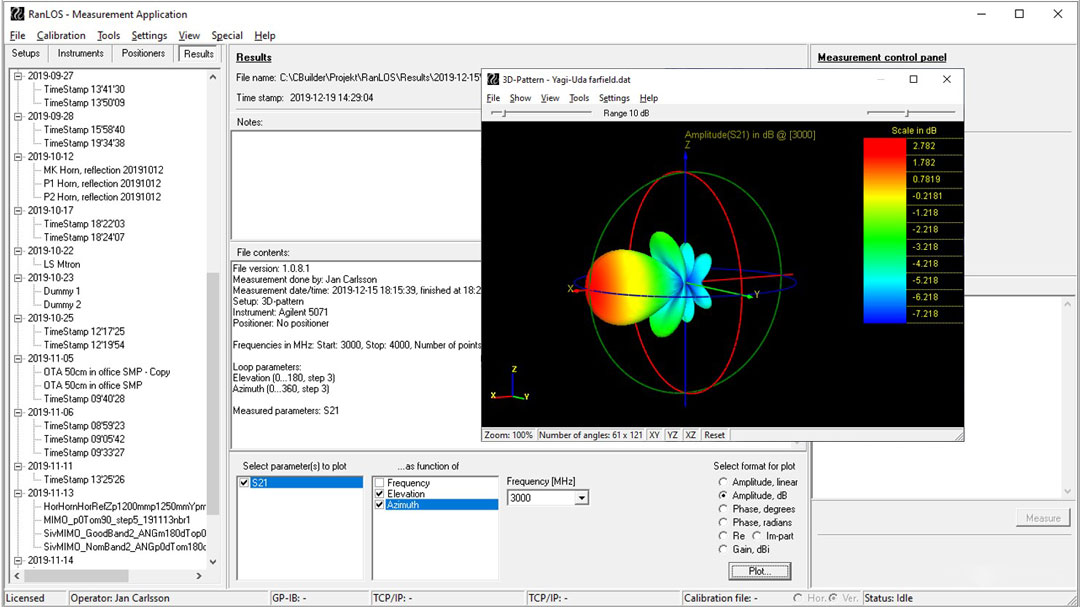

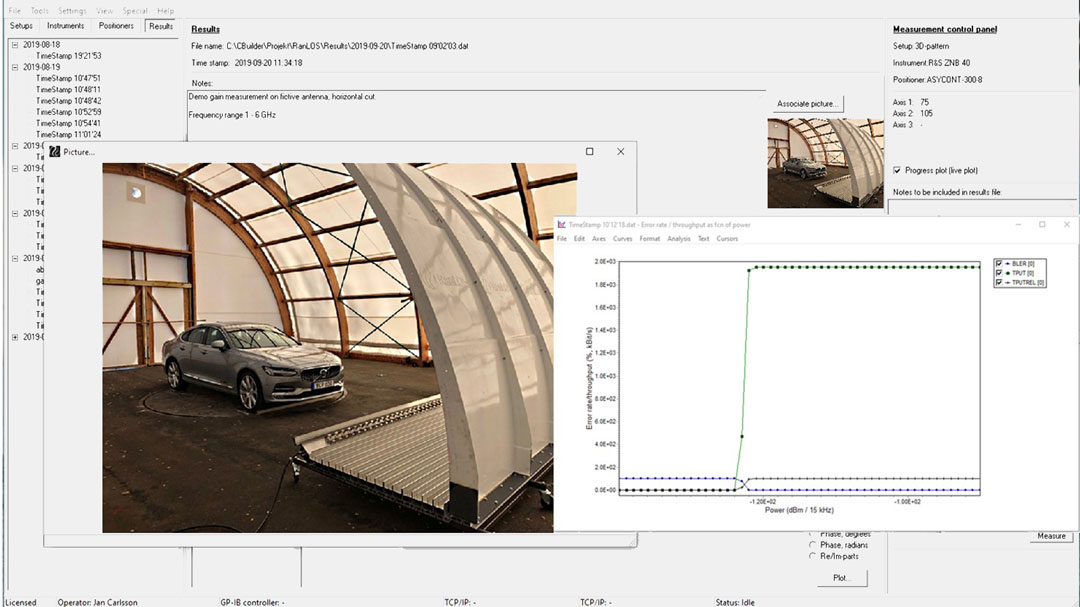

BeamLab

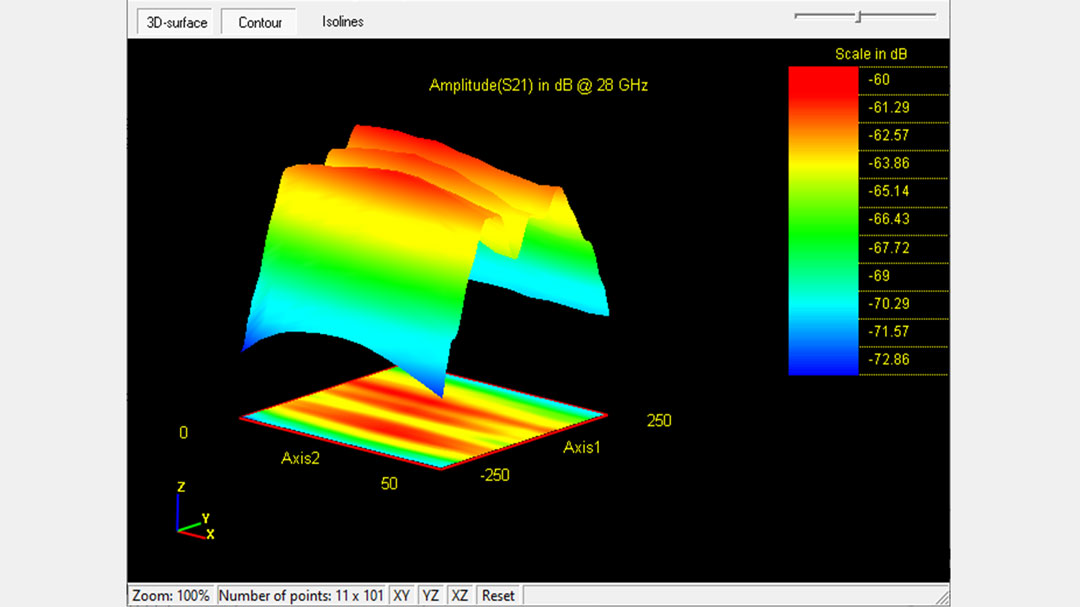

The software. Controls instruments and positioners, guides the operator through the sequence, plots 1D, 2D and 3D and exports the numbers – no post-processing. Compare with earlier measurements; photos of the setup go into the result file. One workflow for every BeamForce system.

  • No specialist education needed
  • Results directly, without post-processing
  • RanLOS’s own software, so the setup adapts to yours: drivers for your instruments and positioners are added when you need them, and measurement modes can be defined for your product tests
Works with your instruments
Network analysers
  • Keysight E5071, 8363, 8722, 8753
  • Anritsu ShockLine ME7868A, ME7869A, MS46121/22/322/522/524
  • Rohde & Schwarz ZNA 43, ZNB 8/20/26/40
Communication testers
  • Anritsu MT8000A, MT8820, MT8821
  • Rohde & Schwarz CMW500
Positioners
  • ASYSOL ASYCONT 300-8
  • INNCO CO3000
  • TOKIN 5905
  • RanLOS BeamTilt
05 · Add-ons

Grow the system when you need to.

  • Two BeamForce 42 units on BeamTilt, one reflector raised and tilted

    BeamTilt

    Lift-and-tilt for BeamForce 42: elevation angles up to 20°, semi-3D together with the turntable. Controlled by BeamLab over Ethernet, on wheels. Developed in SIVERT 2.

  • Feed array, detail

    BeamArray

    Exchangeable, dual-polarised feed arrays that cover 0.7–6 GHz. Start with the bands you need; add the rest later. Upgradeable to higher frequencies.

06 · Services

From delivery to your first measurement.

  • A technician working on a BeamForce reflector in a test tent

    Installation and training

    We set the system up at your site; your engineers run the first measurements with us.

  • BeamLab on a desktop screen

    Support

    Answers within one working day. Software updates and new instrument drivers.

  • BeamForce 42 in an EMC chamber, a car beside it

    Rental

    A BeamForce for a project period instead of a purchase.

07 · Questions

Before the first conversation.

Which system fits what I build?

BeamForce 42 – Complete vehicles, UAVs and platforms. BeamForce 21 – Limited spaces and mobile test setups. BeamForce 8 – Small devices and mmWave. Not sure? Tell us the object, the bands and the links – we say which system fits, or if none does.

Which frequencies?

0.7–6 GHz with BeamForce 42 and 21 (exchangeable feed arrays). 27–28.7 GHz with BeamForce 8.

What can I measure?

Passive antenna patterns with a vector network analyser, and active throughput and receiver thresholds with a communication tester – up to 2×2 MIMO.

Where does the system stand?

In an anechoic, semi-anechoic or EMC chamber you already have, or in a weather-protected tent or open area. The system is portable and on wheels, so it can be stored outside the chamber and rolled in when it is used.

Can I measure 3D patterns?

Azimuth on the turntable; elevation with the BeamTilt accessory for semi-3D patterns.

Does BeamForce replace an accredited range?

Repeatable measurements on site, as often as the design changes. The final verification against a standard or a customer requirement is still done at an accredited facility – you arrive there prepared, with the weak angles already found and fixed.

What happens after delivery?

Installation and training: We set the system up at your site; your engineers run the first measurements with us. Support: Answers within one working day. Software updates and new instrument drivers.

Can we rent instead of buying?

A BeamForce for a project period instead of a purchase.

Why is there no price on the page?

Tell us what you need to test and where. We reply with a configuration and a quote. Book a demo: A measurement on your own object, at your site. Terms per agreement.
