Automotive · OEMs · Tier 1 suppliers · test labs

Before it reaches the road.

Measure the complete vehicle in the EMC chamber or test tent you already have.

  • Used by Volvo Cars
  • Validated against an accredited facility
  • In use in Japan since 2023
RanLOS · SIVERT 2
01 · Why it matters

Found on the road, it is too late.

A drive test shows that the link fails, not why – and it cannot be repeated. Arrive with the weak angles already found.

Reference antenna10 km
Antenna 10 dB poorer3.2 km
Worked example in free space (Friis), not a measurement. Source: RanLOS AN100-2, p. 6.
  • The emergency call drops

    eCall over 4G/5G is required for new EU vehicle types from 2026.

  • The warning never arrives

    1–2 dB less signal can stop V2X completely.

  • The placement is a guess

    Roof, shark fin or glass – until the car is measured.

RanLOS · AN100 (placement: 10 dB ≈ 10 km → 3.2 km) · WP102 (V2X) · Regulation (EU) 2024/1180 (eCall)
02 · What you get

Ten steps from parts to a proven system.

Click through – or drive the car yourself in step 3.

Link OK
Connection lostFailsafe · landing
Illustrative scenario · not a measurement

04 Your environment

Move the antenna of the car.
Watch how the performance changes.
Move the antenna of the UAV.
Watch how the performance changes.

Where an antenna sits decides how the complete car radiates.
Drag the shark fin along the roof – then measure.
Where an antenna sits decides how the complete UAV radiates.
Drag the C2 antenna along the fuselage – then measure.

Drag the antennaPosition 42% from the rear
Available environments
  • EMC chamber
  • Test tent
  • Customer site
  • Hangar or tent

BeamForce 42 rolled into an existing EMC chamber.BeamForce 42.

Azimuth pattern · 2.6 GHzIllustrative pattern · not a measurement
04 · Products for this

One system – and the software that runs it.

  • BeamForce 42

    BeamForce 42

    Vehicles, UGVs, UAVs and other connected systems

    • Feed arrays (BeamArray), exchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHz. Upgradeable to higher frequencies.
    • 1.9 × 3.4 × 4.4 m (D × H × W), approx. 450 kg
    • A full antenna radiation pattern in under 15 minutes – run test after test in the chamber or test site you already have.
    Details →
  • BeamLab
    BeamLab · screenshot

    BeamLab

    RanLOS software

    • No specialist education needed
    • Results directly, without post-processing
    • RanLOS’s own software, so the setup adapts to yours: drivers for your instruments and positioners are added when you need them, and measurement modes can be defined for your product tests
    Details →
BeamForce 42 rolled into an existing EMC chamber.
05 · Proof

Researched. Validated. In use.

  1. 01Research projects SIVERT 1 and 2

    Further developed in the research projects SIVERT 1 and 2 (FFI–Vinnova), in collaboration with Volvo Cars.

    Press release, 3 Sep 2025 →
  2. 02Validated against an accredited facility

    Same antenna, same car body – measured with BeamForce and at an accredited near-field/far-field facility. The patterns agree.

    Microwave Journal, Sep 2023 ↓
  3. 03In use at Volvo Cars and in Japan since 2023

    A complete BeamForce system in use at Volvo Cars. The first system in Japan was delivered and installed in 2023.

    Press release, 3 Sep 2025 → · 20 Dec 2023 →
Accredited NF/FF facility
Accredited NF/FF facilityLarge, fixed, expensive – the reference.

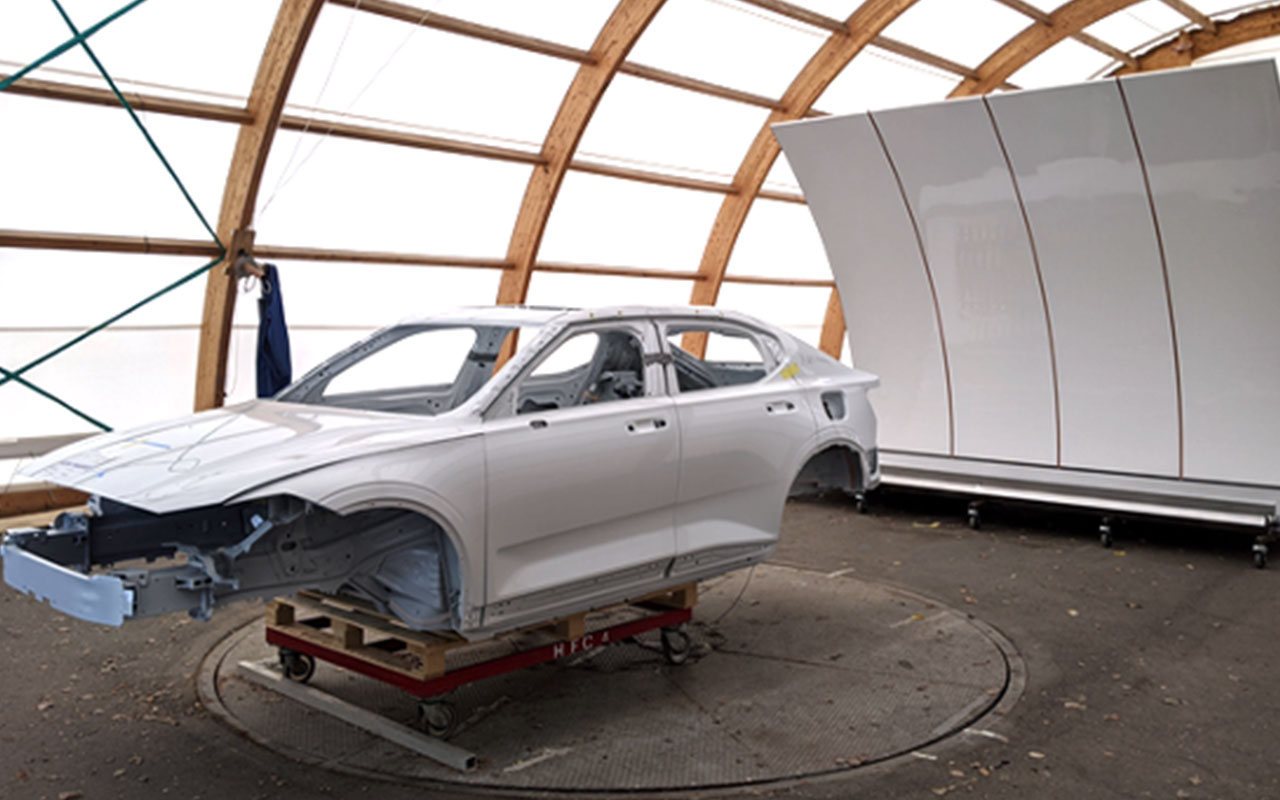

RanLOS in a test tent
RanLOS in a test tentCompact, on site, in your own environment – the same result.

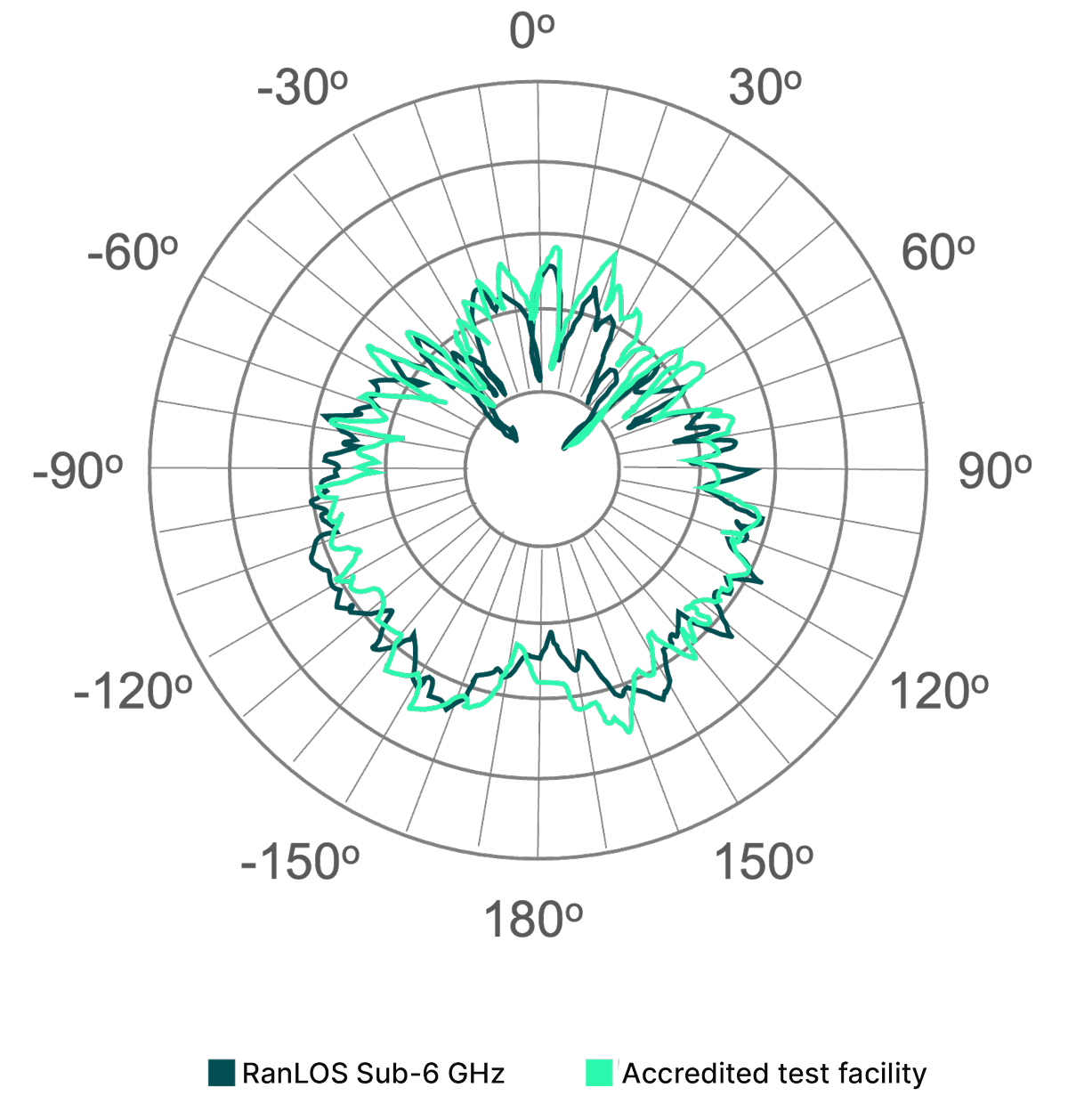

Radiation pattern measured with RanLOS BeamForce compared with an accredited NF/FF facility
The patterns agreeAntenna gain at 2.6 GHz – RanLOS (green) vs NF/FF (dark)

Where it is in use

  • Volvo CarsSwedenIn use at Volvo Cars
  • TOYO CorporationJapanBeamForce 42 in the Japanese automotive test market
  • A global vehicle manufacturerJapanTwo complete systems ordered via TOYO, 2026
  • A public research instituteSouth KoreaOne complete system ordered via Dymstec, 2026
  • CATARCChinaDemo project, via TOYO
RanLOS press releases via MFN, 2025–2026.
06 · Go deeper

Go deeper

How the comparison was made

A near-field/far-field range is the gold standard for antenna measurement: large, fixed and expensive. In the SIVERT project (FFI–Vinnova) the same roof antenna on the same vehicle body was measured both ways. The agreement between the two methods is very good (Microwave Journal, 2023) – which is what lets you trust a compact system in your own chamber.

BeamForce 42 · Key facts
  • Feed arrays (BeamArray), exchangeable: 0.7–1.5 · 1.5–3 · 3–6 GHz. Upgradeable to higher frequencies.
  • 1.9 × 3.4 × 4.4 m (D × H × W), approx. 450 kg
  • A full antenna radiation pattern in under 15 minutes – run test after test in the chamber or test site you already have.
BeamLab · Key facts
  • No specialist education needed
  • Results directly, without post-processing
  • RanLOS’s own software, so the setup adapts to yours: drivers for your instruments and positioners are added when you need them, and measurement modes can be defined for your product tests
Go deeper · 4 papers

Bring the measurement into development.

Tell us which car, which antennas and which links.

Contact RanLOS

All fields are required unless marked optional.

What do you want to test?

Tell us a little about what you need.
